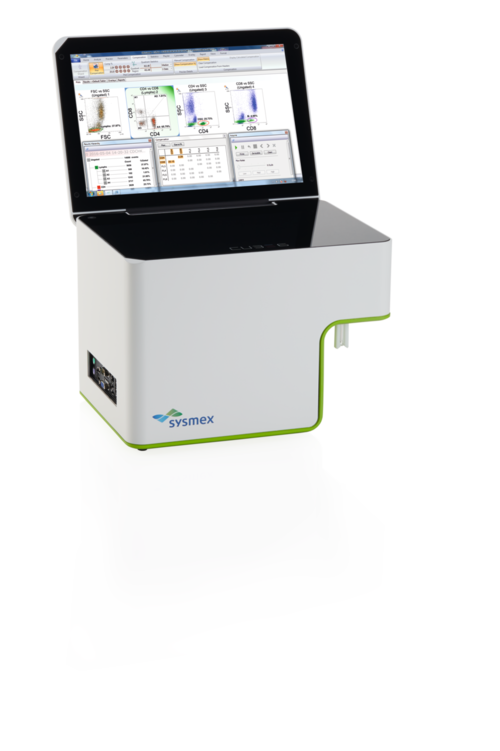

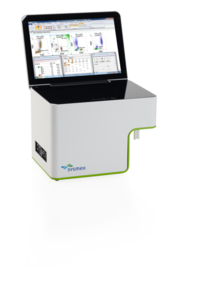

CyFlow Cube 6
CyFlow Cube 6 je kompaktní průtokový cytometr pro analýzu jednotlivých buněk či mikroskopických částic.
- Configurations with up 6 optical parameters (up to 4 colours)
- 488 nm blue laser and 638 nm red laser
- Particle size: 0.1 – 100 µm
- Fluorescence sensitivity: ≤ 100 MESF (FITC) | ≤ 50 MESF (PE)

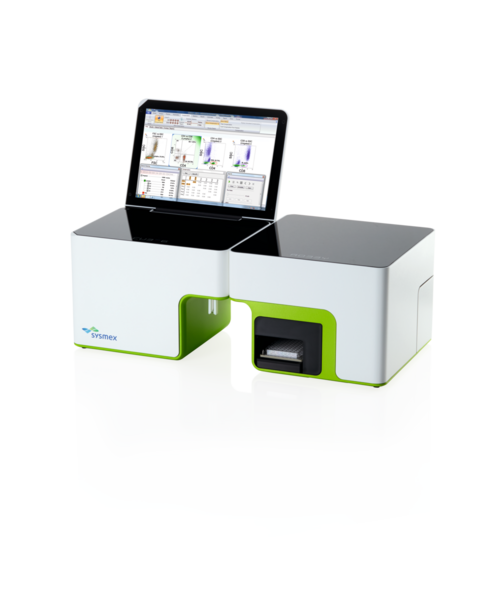

- Optional CyFlow Robby 6 Autoloading Station
CyFlow Cube 6 je kompaktní a unikátně navržený pro všechny aplikace analýzy buněk a absolutní kvantifikace. CyFlow Cube 6 využívá 6 optických kanálů. Forward Scatter (FSC) a Side Scatter (SSC) v kombinaci s 4 fluorescenčními kanály (FL1-FL4).
Podrobnosti
CyFlow: Intuitive software for CyFlow Cube 6
The newly designed, intuitive CyFlow acquisition and analysis software offers the measurement of millions of cells at your fingertips.
- Quickly choose your plots for analysis from all of the combinations shown in Preview Mode.
- Easily compare plots with the Overlay Wizard, for single or dual parameters.
- Share and customise your results within your research organisation with the Report Generator.
- Change your view with Zoom and V-Log Scale; you are even able to gate in Zoom Mode.
- Compensate rapidly with the Compensation Wizard.
- CyFlow optimally supports the True Volumetric Absolute Counting of the CyFlow Cube 6, displaying particle concentrations for any subsets of cells, even if defined by a gate at a later time after the acquisition.
Technická specifikace
| Light sources | Up to two simultaneous light sources (lasers) Blue laser: 50mW at 488nm Red laser: 25mW at 638nm or 40mW at 640nm Optics: Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL4 Exchangeable optical filters Flow system: Quartz flow cuvette for laminar sample transport and hydrodynamic focussing True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s |
| Software | Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display Easy set-up of experimental templates (configuration files) Flow Cytometry Standard (FCS) data format for storage of original and evaluated data |
| Dimensions | Stand-alone instrument: W 385mm x H 290mm x D 280mm With Autoloading Station: W 745mm |
