CyFlow Cube 8

Tento mezinárodně oceněnovaný, skutečně samostatný průtokový cytometr je ultra-kompaktní a unikátně navržen pro všechny aplikace v analýze buněk a absolutního počtu. CyFlow Cube 8 nabízí přesnou průtokovou cytometrii  zaměstnává 8 optické parametry a přitom velikost přístroje je pouhých 50x47x35,5 cm. Čelní rozptyl (FSC) a boční rozptyl (SSC) pracují v kombinaci 6 fluorescenčních kanálů (FL1-FL6). Volitelný vestavěný CyFlow řadící modul nabízí uzavřený systém, nedestruktivní a bezpečné třídění buněk a částic založené na diamant-piezo principu.

Podrobnosti

CyFlow: Intuitive software for CyFlow Cube 8

The newly designed, intuitive CyFlow acquisition and analysis software offers the measurement of millions of cells at your fingertips.

  • Quickly choose your plots for analysis from all of the combinations shown in Preview Mode.
  • Easily compare plots with the Overlay Wizard, for single or dual parameters.
  • Share and customise your results within your research organisation with the Report Generator.
  • Change your view with Zoom and V-Log Scale; you are even able to gate in Zoom Mode.
  • Compensate rapidly with the Compensation Wizard.
  • CyFlow optimally supports the True Volumetric Absolute Counting of the CyFlow Cube 8, displaying particle concentrations for any subsets of cells, even if defined by a gate at a later time after the acquisition.
Technická specifikace
Light sources Up to four light sources (three lasers + high-power UV LED) Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
High-power UV LED: 365nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL6
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and hydrodynamic focussing
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions Stand-alone instrument: W 500mm x H 370mm x D 470mm

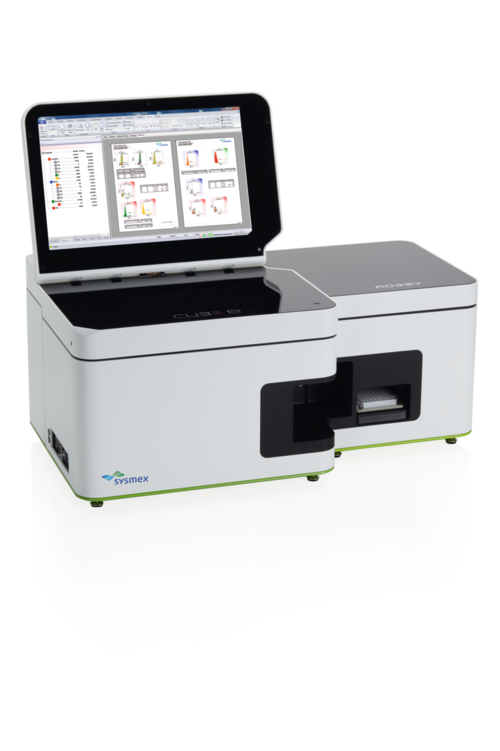

With Autoloading Station: W 840mm

CyFlow Cube 8 Sorter

General facts Configurations with up to five optical parameters (up to three colours). Sterile sorting by closed fluidic system. Optional CyFlow Robby 8 Autoloading Station for well plates and tubes
Light sources Up to two simultaneous light sources (lasers)> Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL3
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and sorting process
Completely closed and integrated fluidic system
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions  W 500mm x H 370mm x D 470mm (without sorting module)
